Product Description
|
1）Application Industries:
Widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries.
2）Application Materials:
Specialized fast speed cutting of a variety of metal plates, and pipes (add pipecutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plates, rare metal and other materials
Technical-parameters
Name | YH3015G |
Processing area | 3000×1500mm |
Laser power | 1500W/2000W/3000W/6000W |
XYZ axis range | 3025 /1525 /100mm |
Thickness | 0-30mm |
X/Y axis positioning accuracy | ±0.03mm/m |
X/Y axis repeated positioning accuracy | ±0.03mm |
Working speed | 120m/min |
Max acceleration | 1G |
| Graphic support | AI、BMP、PLT、DXF、DST |
Workbench maximum load | 800-1000kg |
Transmission mode | Precise pinion and rack,dual-drive transmitting |
Temperature | 0℃-40℃ |
working volatge
| 380V/220V |
Model | YH3015G |
Fiber laser | Raycus laser souce 1500W/2000W/3000w/6000W |
Cutting Head | raytool laser autofocus head |
Servo motor | Fuji |
Pneumatics make | Japan SMC |
Solenoid Valve make | Japan SMC |
Electricals make | Schneider |
Rack and Pinion | pantoscopic |
Gear box reducer make | Singpo |
LM guide | 25Hiwin guider |
Control system | Raytool system |
| Chille | S&A Chille |
Laser cutting machine tool | single platform |
|

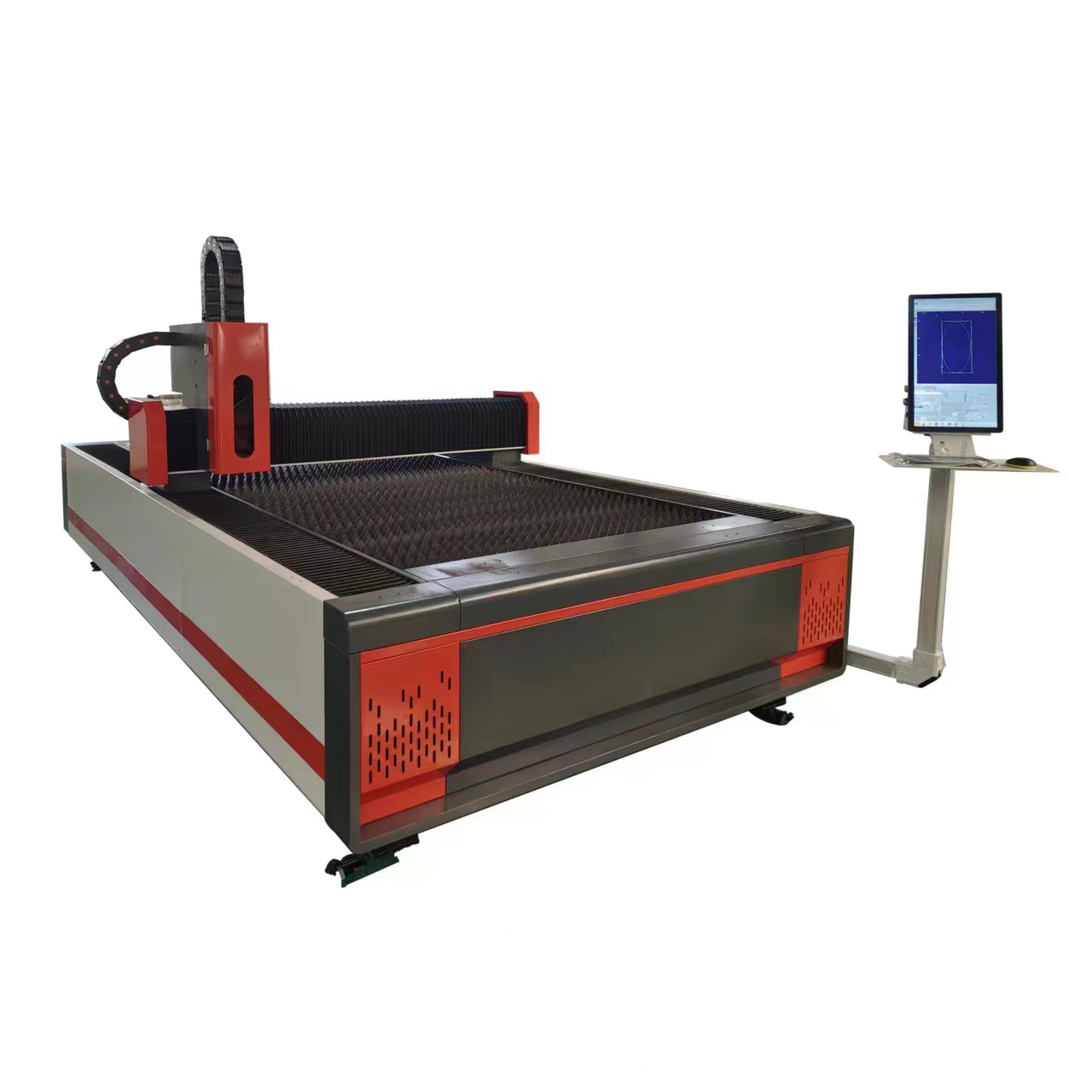

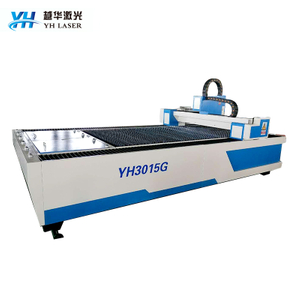

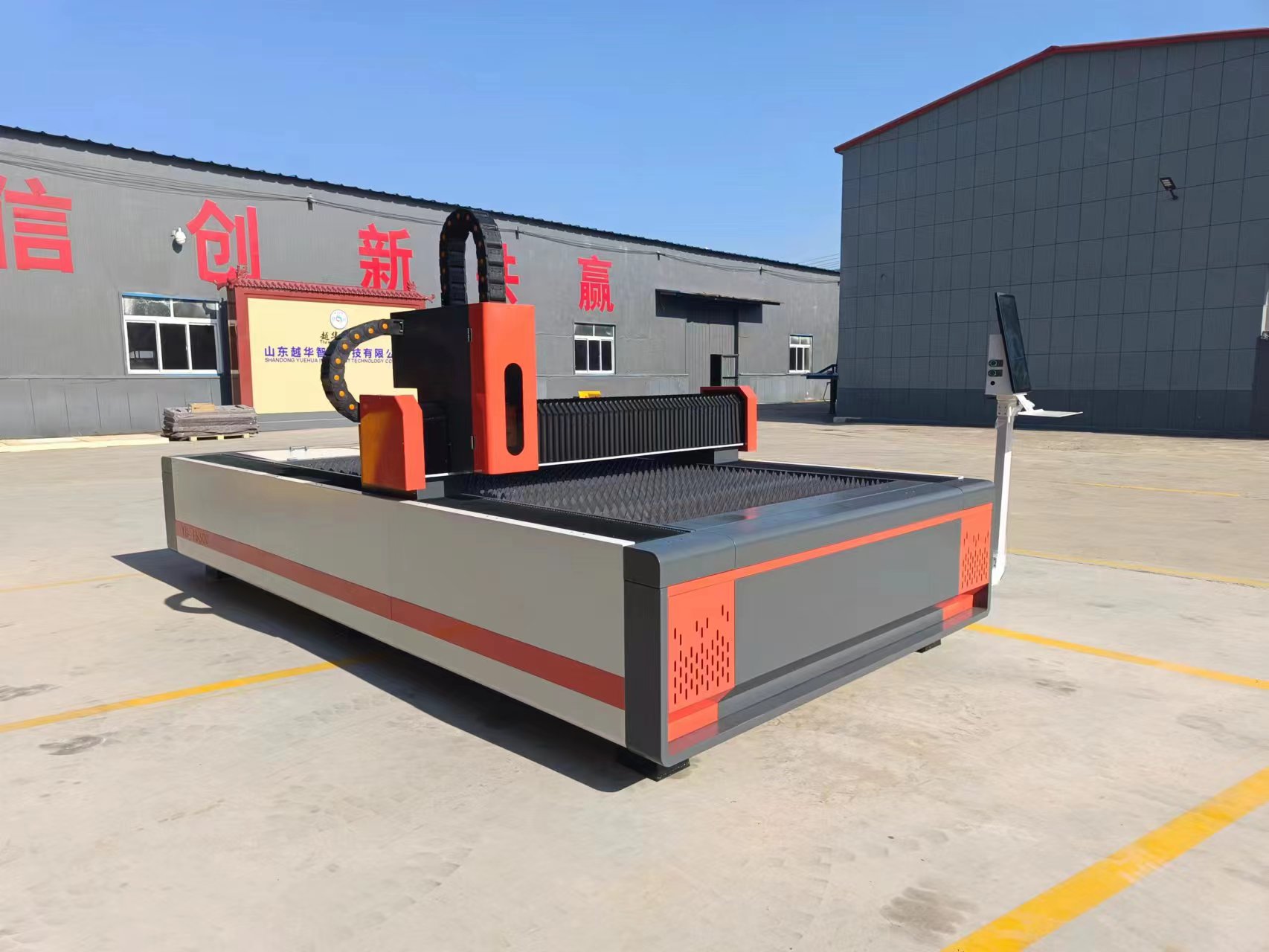

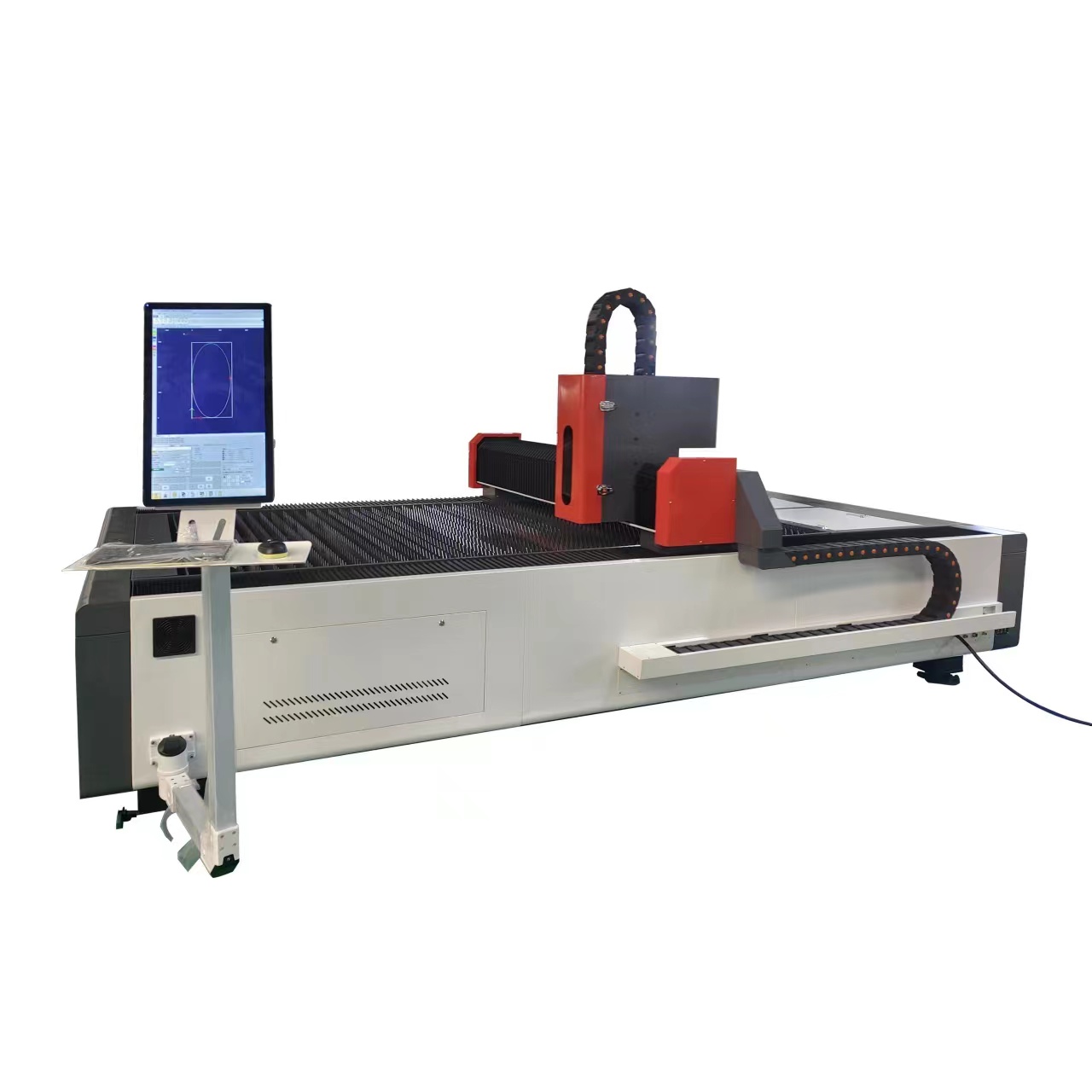

Product display
